Mahir Technologies Inc

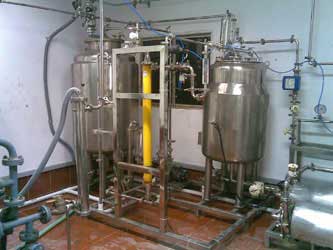

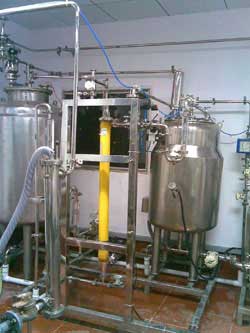

Ultrafiltration Plant


Ultrafiltration Plant

We offer Ultrafiltration Plant, which is designed by using advanced technology with the purpose of removing micro bacterial counts. As a renowned Ultrafiltration System Exporter, we cater to the requirements of clients cross the world for Industrial Filtration System. Our Ultrafiltration Control System, as an advanced Industrial Filtration System is used as a pre treatment to the existent reverse osmosis plants. This system is highly admired by our clients and we have even received positive feedbacks from them. Today, we are counted amongst the well-known water Ultrafiltration Plant Exporters from India.

Ultrafiltration
Ultra filtration system is proposed in pretreatment and post treatment. The UF unit is available in 100 lph to 150m3/hr. Ultra Filtration work on cross flow filtration principle and designed operates at around 85% recoveries.

The Ultrafiltration Plant in pretreatment is proposed to separate the fine physical particulates like suspended solids, turbidity, SDI, or Colloidal silica, which is harmful to the RO membrane in the next operation.

The Water treatment system is proposed in post to existing DM plant to control the organic and microbial impurities.

Ultra filtration is the advanced technology for removal of microbial count. UV, i.e. Ultra Violet disinfection technology was being used for disinfects the bacteria. Major drawback of this method was, it is an ultra violet ray based technology and ultra violet rays are used to disinfect bacteria, which can not multiply, but the unviable bacteria are always present after disinfection, which tended to produce Endotoxin. More over the result of the Ultra Violet system is only, reduction of bacteria up to log 3 i.e. 99 % where as Ultra Filtration can result up to log 7 i.e. 99.9999 %.

The system proposed by Mahir Technologies Inc is with the best inputs like KOCH membrane in Ultra filtration, which is the heart of the system. KOCH is the worldwide leader in Membranes, especially UF hollow fiber membrane, which is ideally required for post to DM for removal of organic matters.
Attributes :
  • Superior quality components used
  • Consistent performance
  • Easy to operate
  • Cost-effective

Applications :
  • Surface water for potable use
  • Pretreatment to existing Reverse Osmosis Plants
  • Recycle to tertiary treated effluent
  • Colloidal silica removal from surface water
  • Heavy metal removal like Fe. For drinking water application
  • Post treatment of DM plant for reduction of microbial count / colloidal


Scope of Supply :

Chlorine Dosing system 1 No
Acid dosing system 1 No
Feed water Tank (Optional) 1 No
Permeate water tank (Optional) 1 No
Feed water Pump 1 No
Backwash Water Pump 1 No
UF module Block 1 No
Instruments 1 No
Interconnecting Piping, Skid, Valves 1 No

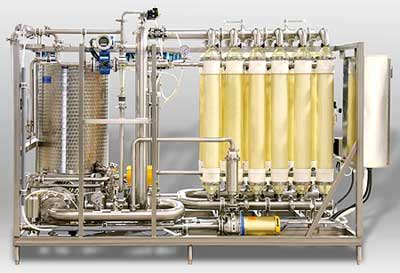

Ultrafiltration Plant (MT - UP - 04)

Ultrafiltration Plant (MT - UP - 04)
The Ultrafiltration Plant that we make available for the clients is developed and designed as per the international quality and standard. Our Ultrafiltration Plant is highly efficient for the filtration of water at a very short span of time.
